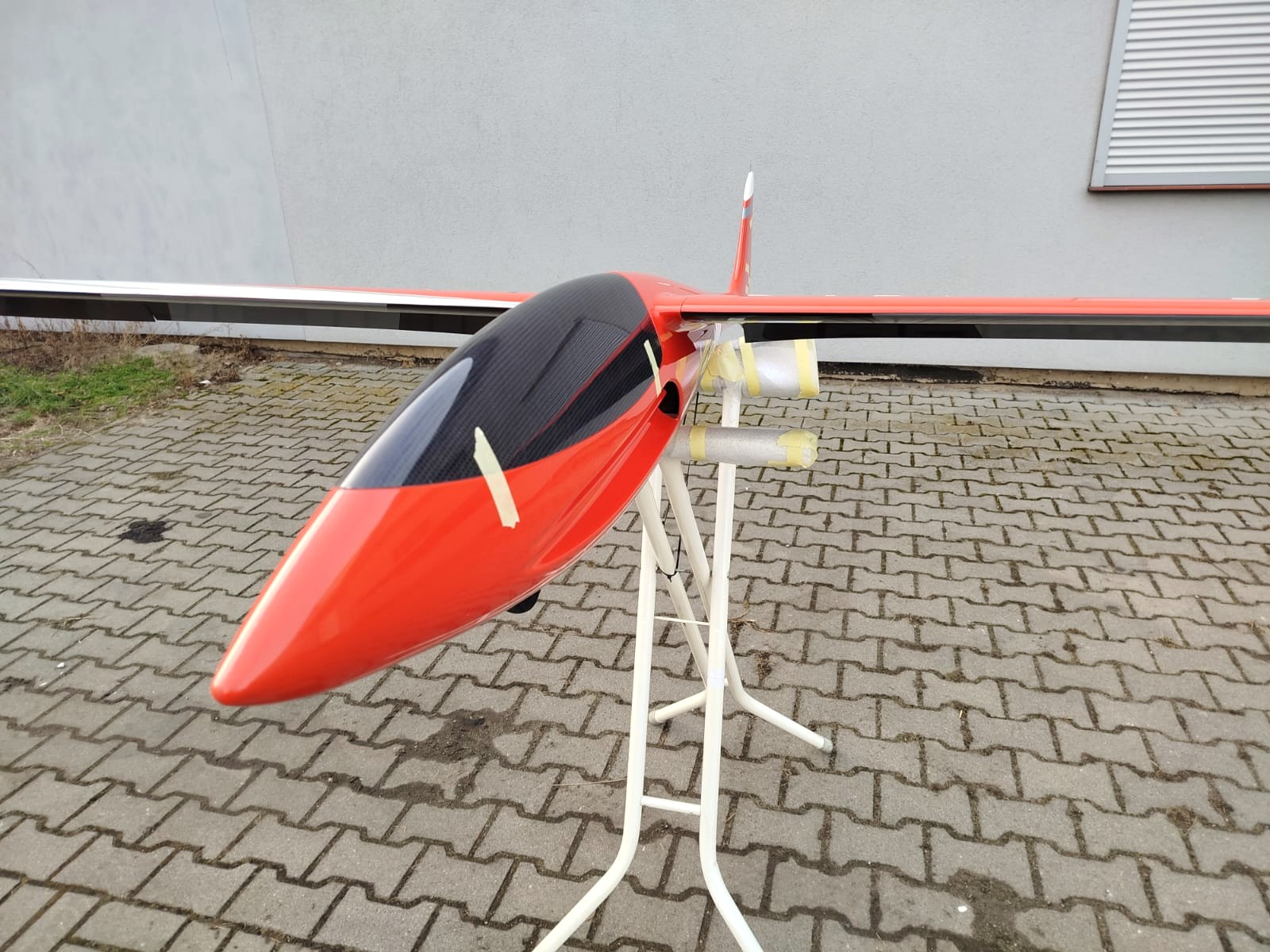

We finally reveal the newborn in Glider_It JEEMAX, a new GliderJet model with a 3.5 m wingspan which houses a 70mm internal turbine (here a K-65 g4), and all the technical innovations that Glider_it has achieved!
We wanted to create, for this occasion, this special color "prototype" scheme for the test model #001! ūüė≤ūüėČūüėé
Jeemax is capable of taking off from the ground thanks to its retractable landing gear and can also be used on asphalt runways for landing!, carbon square wing joiner and hinge on the bottom.
Jeemax immediately demonstrated great aerobatic flying skills both with engine and gliding, and a formidable handling.
We thank Kingtech Turbines and Wemo Ezfw for supporting us in the development of Jeemax and a special thanks goes to all the members of the Glider_It Team, true friends and adventure companions!

we have been producing gliders for the plains and slopes for more than 20 years... but with our GliderJet we have opened a new concept...
THAT WE'LL TRY TO EXPLAIN IT: imagine taking off with this model, arriving at altitude and turning off the turbine, flying for 10 minutes in a thermal, when you are at low altitude, if you haven't found thermals, re-power on the turbine and this time using the same loving aircraft for the Saling flight to perform a SPORTJET flight..... then, before landing, you can go again to high altitude and, once turned off the turbine again, immerse yourserf in a pure glider aerobatic program... then land! This is the concept of the Jeemo first and of the new JEEMAX!

The prototype flew with the K 65 and in the kit of the first production models we supply the attachments for that engine which has demonstrated exceptional characteristics in conjunction with the JeeMax. The model is also capable of accommodating larger diameter turbines, we will soon also be testing with other turbines (including those of larger diameter and thrust) and once approved we will provide specific attachments for those engines too.

The kit is highly prefabricated and takes a few hours to fly:
- You must insert the turbine using the special guides (provided)
- Insert the specific tank (provided)
- Insert the retractable landing gear(provided)
- Install your servos using the frames (provided)
- Make the wiring and connections.
We can also carry out all the assembly phases for you.



Technical Data

   Unit of Measure Value
Wing span: mm  3500
Wing area: dm2 91
Fuselage length: mm 1980
Weight (FS, extralight tech.):  kg 9
Wing load (FS, extralight tech.): g/dm2 91
Wing airfoil: n/a Dev by Glider_it

Engine

   Unit of Measure Value
Kerosene Turbine Diameter mm 65 and more

Technical Setup

Suggested Servos Setup  Brand Type Max Thickness
elevator: KST  X10 Pro 10 mm
rudder: KST  A12  12 mm
ailerons: KST  A12  12 mm
flaps: KST  A12  12 mm
landing gear: KST A12 12 mm





Pre-order available! - Click on your preferred color scheme to proceed
